Technical info
- Size: 1200*280*980 mm (can be customized)
- Lane Width: 600 mm (Standard) 900 mm( Handicapped)
- Arm material: 304 stainless steel
- Passing speed: 40 person/min
- Power supply: 110 V/220 V 50/60 Hz
- DC motor: 20 W
- Gate Open Signal: Dry Contact/ Relay
- Optical turnstiles Driving Motor: 24 V
- Max Lane width: 1600 mm

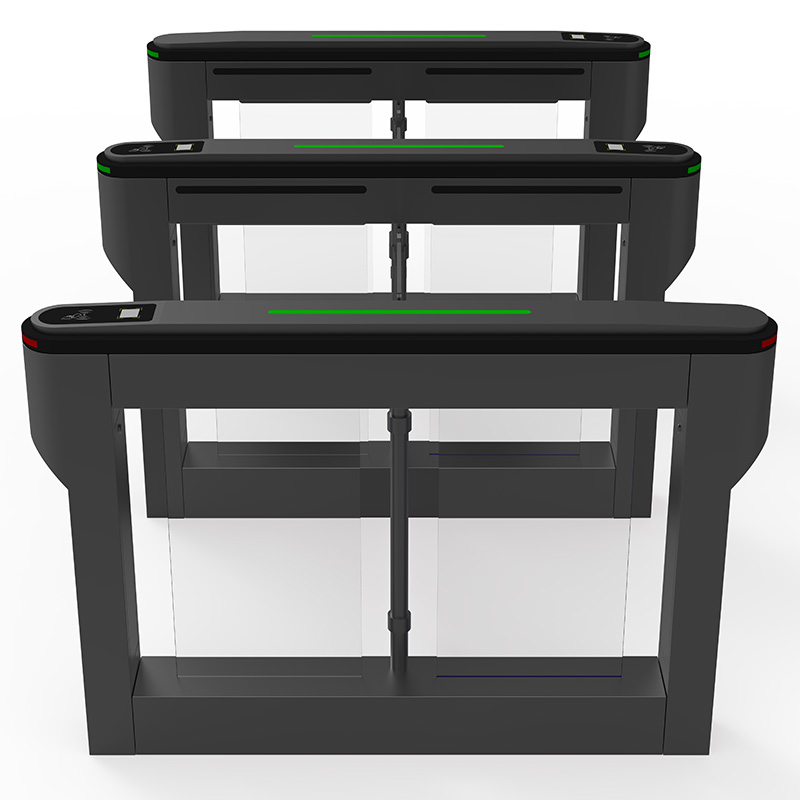

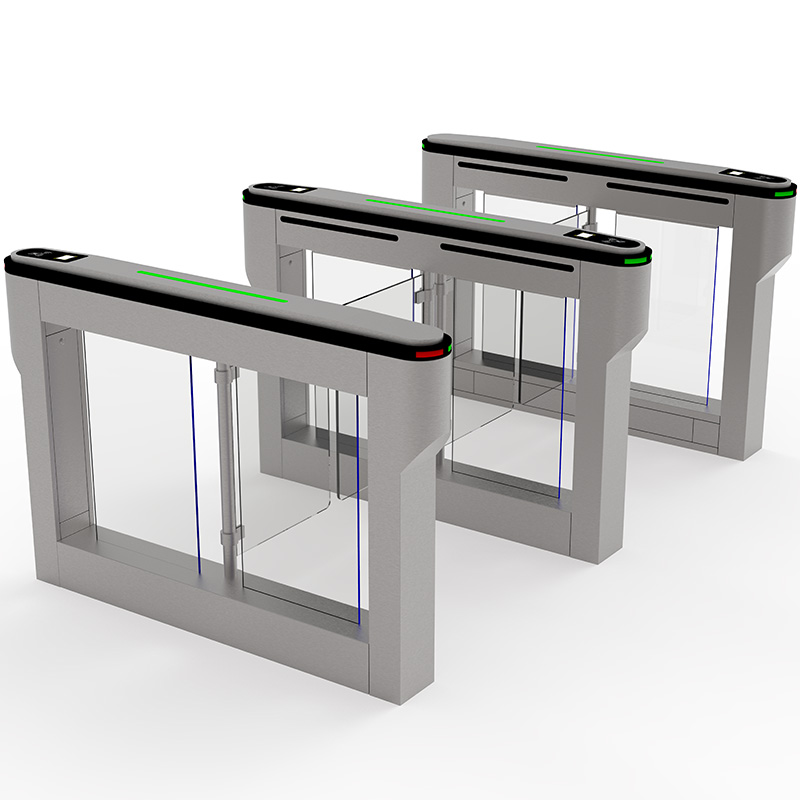

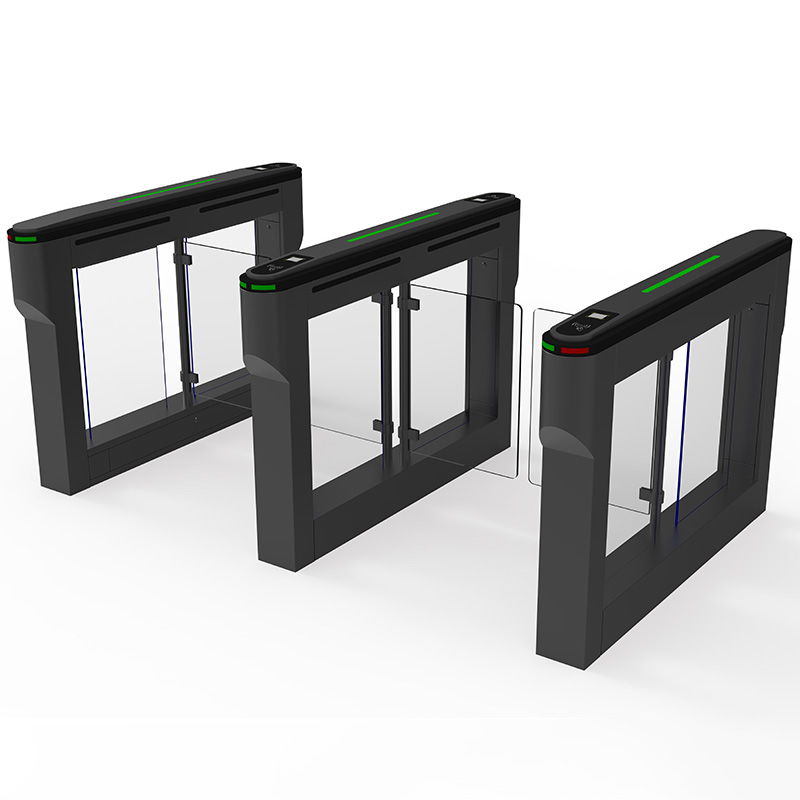

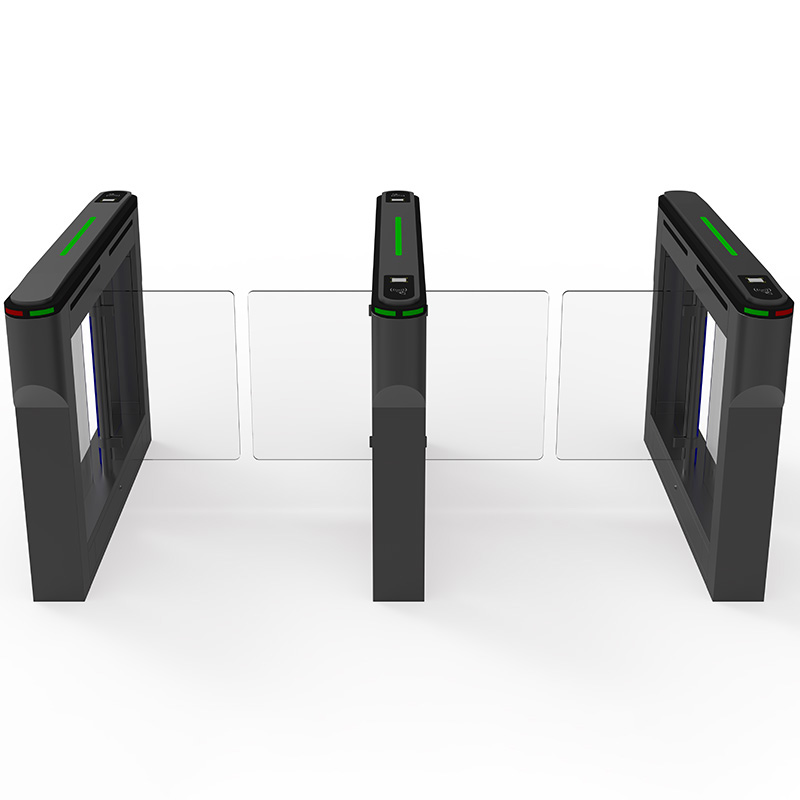

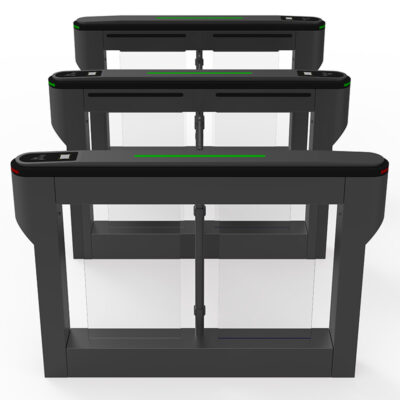

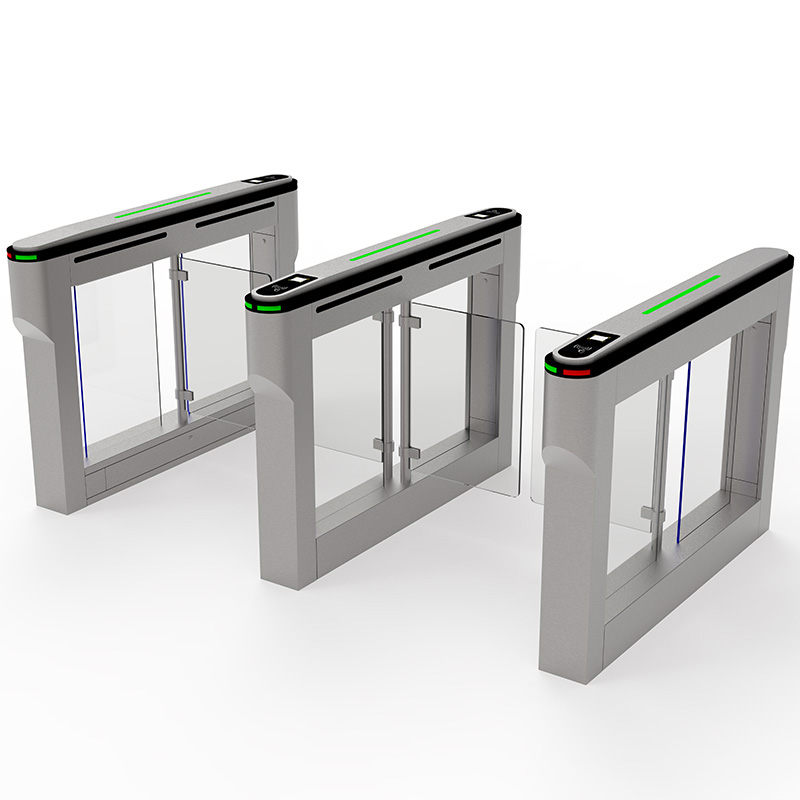

ENTRY TURNSTILES SWING BARRIER TURNSTILE GATE carries a 2 years warranty and durable maintenance and repair support.
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.
As a high-performance entry turnstiles swing barrier turnstile gate, the entry turnstile gate can be used in many places by virtue of its many advantages. In-office buildings, libraries, airports, etc, which can effectively protect security to access control.
Entry turnstiles is an attractive swing barrier turnstile that is easily capable of handling high volume and abusive conditions. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry out intelligent management on passage. Mairsturnstile offers the best quality entry turnstiles swing barrier turnstile gate for sale.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
- Entry turnstiles is a high-speed gate, swing turnstile gate, which is usually applied in the location with high traffic flow in bi-direction running.
- The chassis is made from hairline texture 304 stainless steel, which creates a seamless and elegant access point to match most indoor environments.
- This entry turnstiles swing barrier gate comes with international standard RS485 and relays Which makes it widely compatible with all existing software in the industry and almost all the access control like RFID systems, Bar codes systems, Face recognition systems, and fingerprint systems, etc.
- In case of emergency, cut off the power, and the optical turnstile will open automatically to allow free passage which is complying with fire safety requirements. But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
- Optical entry turnstiles are suitable for luxury and high-end entrance solutions.
- The whole system runs smoothly, with low noise, and high speed.
- Casing Material: 304 stainless steel
- Size and material thickness can be customized
- Alarm function, if there is an illegal intrusion and reverse intrusion, the gate will alarm and the door will lock.
- There is a total of 5pairs of infrared sensors The middle sensors are to prevent pinch pedestrians.
- Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
- LED indicator. Red cross and green arrow. There are also LED indicators on the front post. The LED light can be added to the arms.
- Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
- Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
- Anti-bump, Anti clamp, The gates come with brushless During operation if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians, especially children from bumping, clipping, striking, etc.
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
