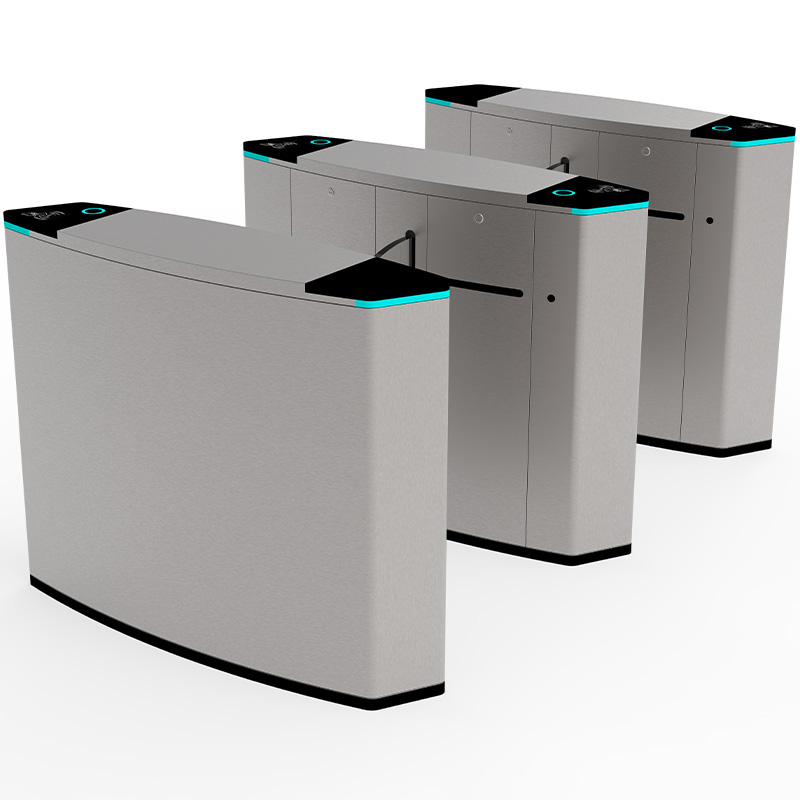

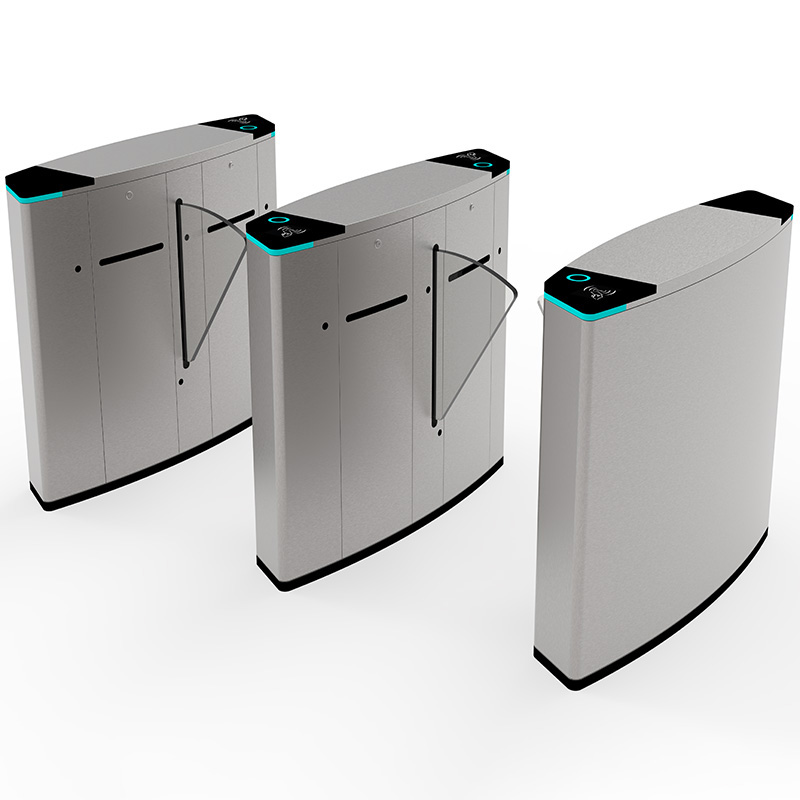

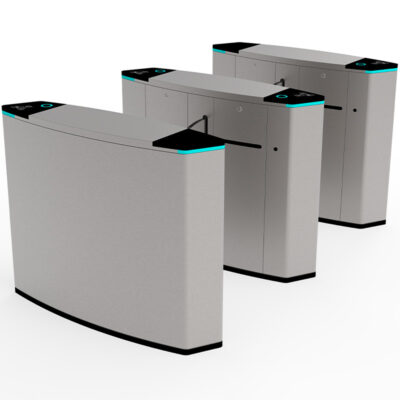

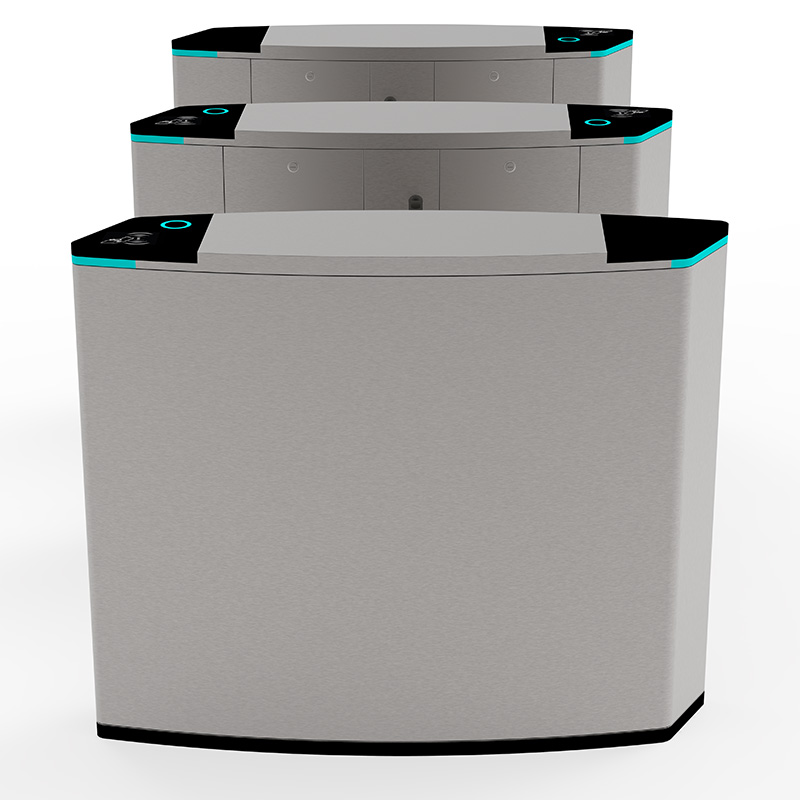

High Speed Flap Barrier Biometric Turnstile ME252

Flap Barrier Biometric Turnstile carries a two years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the turnstile gate or have any questions, please contact us

Flap Barrier Biometric Turnstile provides an efficient and reliable way to ensure that only authorized people are allowed to access each area of a building. This is a high-speed flap barrier biometric turnstile that is capable of handling high-volume access and abusive conditions.

The flap barrier biometric turnstile comes with a standard electric interface that can easily integrate the common 3rd parties access control system, such as bar-code scanner, Token coin collector, time & attendance system, card collector, biometric systems (fingerprint & face recognition), ESD system and fare collection system, etc. It’s one of the most common security turnstiles.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.

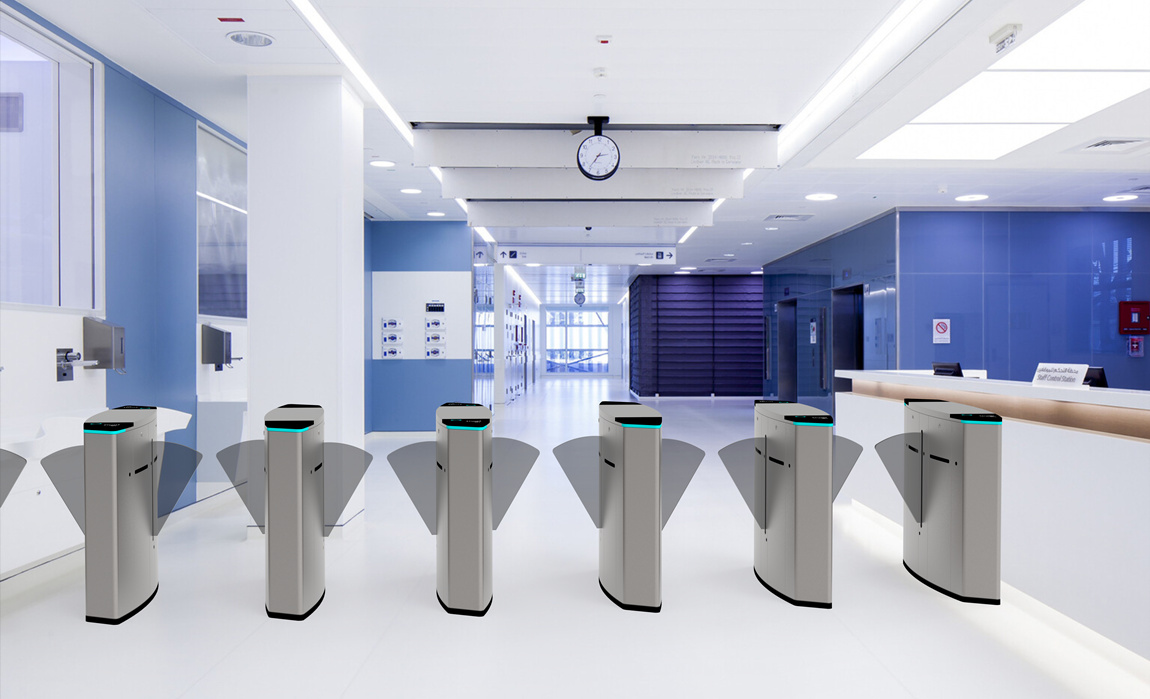

Flap Barrier Biometric Turnstile is constructed to control people entering or exiting restricted areas and is usually used for high pedestrian traffic flow locations in both directions.

The flap barrier casing is made of brushed 304 stainless steel which creates a seamless and nice entrance system to blend into most indoor environments.

It can be integrated with all third-party access control systems (e.g.: RFID access system, Push the button, Fingerprint and face recognition with temperature check).

In case of emergency, the FlapTurnstile arm will open automatically connecting with the battery or capacitor to allow free passage.

• OpticalFlap Turnstiles are suitable for luxury and elegant entrance solutions.
• The flap turnstile features fast speed, long life, high performance, and high operation dependability
• Alarm function, in case of illegal intrusion and reverse intrusion.
• The infrared sensor will alarm and the LED light will flash to prevent pinching pedestrians.
• Automatic reset function: flap arms will close automatically within 5s in default (can be set) if a passenger delays to
• The flap turnstile will stay in the lock if someone wants to burst in without swiping the RFID card.
• The LED directional indicator on the top and front post
• Anti-reverse function, the biometric turnstile alarms if someone wants to enter in the reverse direction.
• Bi-direction or single-direction running are options

Technical Parameter:

1. Size: 1200*280*980mm
2. Material: 1.0mm SUS 304 Hairline 400#+Top Cover 1.2mm SUS304
3. Arm material: PC board
4. Pass Width: Standard 550mm
5. Passage direction  Single directional/Bi-directional
6. Pass rate: 30-35 persons/minute
7. Operating time: 0.2 seconds
8. Power input: AC100-240V,50/60HZ
9. Working voltage: 24V
10. Working humidity: 30%~95%
11. Working temperature: -40℃~+70℃
12. Working environment: Indoor
13. Input interface: RS485, dry contact relay
14. Mechanism: DC Brushed motor  30W
15. Infrared sensor: 4 pairs
16. MCBF: 3,000,000 Cycles
17. Application: Bus stations, Libraries, Government Halls, Factories, Schools, etc

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
