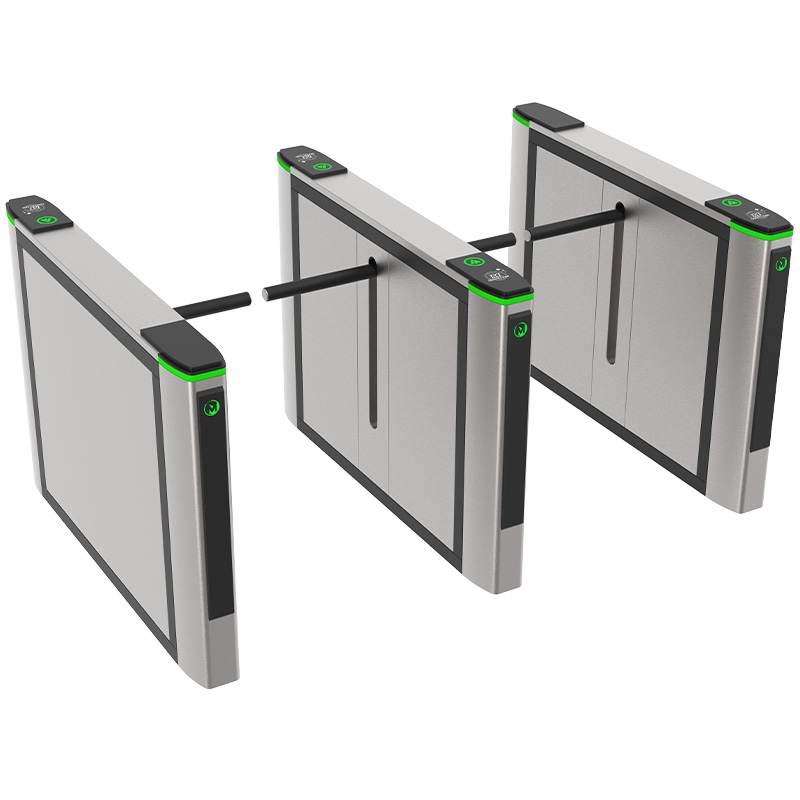

M series drop arm turnstile MECPDT-100

M series drop arm turnstile MECPDT-100 carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the full height turnstile gate or have any questions, please contact us

M series drop arm turnstile MECPDT-100 is a kind of access control management equipment used to control and manage pedestrians. Tripod Turnstile pedestrian turnstile gate offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The tripod turnstile gate’s casing material is 304 stainless steel.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.

•  Tripod turnstile pedestrian turnstiles are compact and cost-effective entrance solutions.
• The pedestrian turnstile tripod turnstile has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, and durable.
• Tripod turnstiles pedestrian turnstiles can be mounted for both indoor and outdoor locations. The IP rate is 54
• It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
• This pedestrian turnstile tripod turnstile gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
• The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
• Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life
• The mechanism is mold design. All the components are precise.  It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.
• The design of the pedestrian turnstile tripod turnstile makes only one person pass at one time.
• Single-directional or Bi-directional is an option.
• LED directional indicator light on top
• Solenoid valve: DC24V ±5％
• Arm length: 510 mm
• Mold Mechanism with hydraulic damper for shock-absorbing
• Reliability of the mechanism: 3 million, no-fault
• Direction of rotation: Bidirectional
• Method of arm dropping: drop automatically when the electricity is cut off.
• Operational voltage: DC 24V ±5%
• Voltage of indicator light: DC12V ±5％(standard)
• Working temperature: -30℃～60℃
• Humidity: 5%～90%
• Waterproof: IP44
• Time needed for opening: 0.2 s
• Working environment: Indoor
• Automatic clock function: if there is an open signal received,  but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
• When power is off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.
• We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
