Technical info
- Physical dimension – 75*65*35.10mm
- Reading window dimension – 51*46mm
- Materials ABS

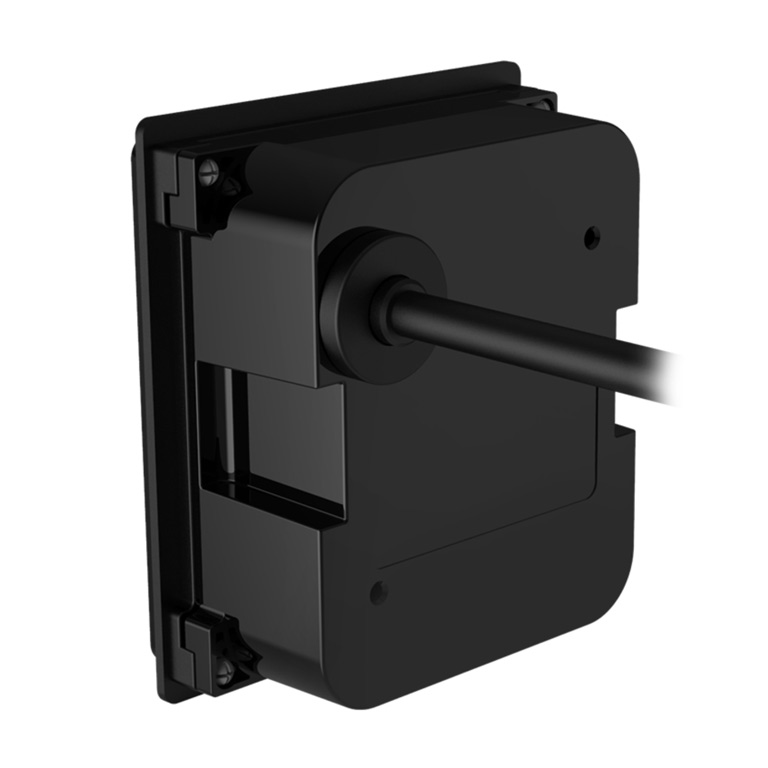

- Mounting method
- Embedded mounting
- Output interface USB, RS232, RS485, TTL
- Beeper Imaging sensor 300,000 pixel CMOS sensor
- Max resolution 640*480
Strong reading ability
t can recognize the QR code and one- dimensional code on the screen of the mobile phone, support the enhanced engine mode, and can scan and read the code when the screen of the mobile phone is dark.
Paper code reading ability
The main QR codes and various one- dimensional codes printed on the paper can also be read
High speed reading
Different mobile phone LCD screens generally have different contrast, color, and degree of reflection, which can be read as long as the code system is within the reading window.
IP 65
This is a outdoor rate scanner. It is IP65.
