Technical info
- Length: 1500 mm
- Width: 120 mm
- Height: 980 mm
- Passage width: 600-1300 mm
- Material: 1.2mm SUS 304 Hairline 400#+Top Cover 12mm black acrylic
- Arms material: 10mm Acrylic
- Pass Width: standard 600mm max 1300mm（arm hollowed out)
- Passage direction: Single directional/Bi-directional
- Pass rate: 30-35 persons/minute
- Operating time: 0.2 seconds
- Power input: AC100-240V,50/60HZ
- Input interface: RS485, Dry contact
THIS HIGH-QUALITY SPEED GATES NZ FOR LOBBY carries a 2 years warranty and durable maintenance and repair support
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.
Mairs can customize speed gates speed lanes turnstiles according to your requirements. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

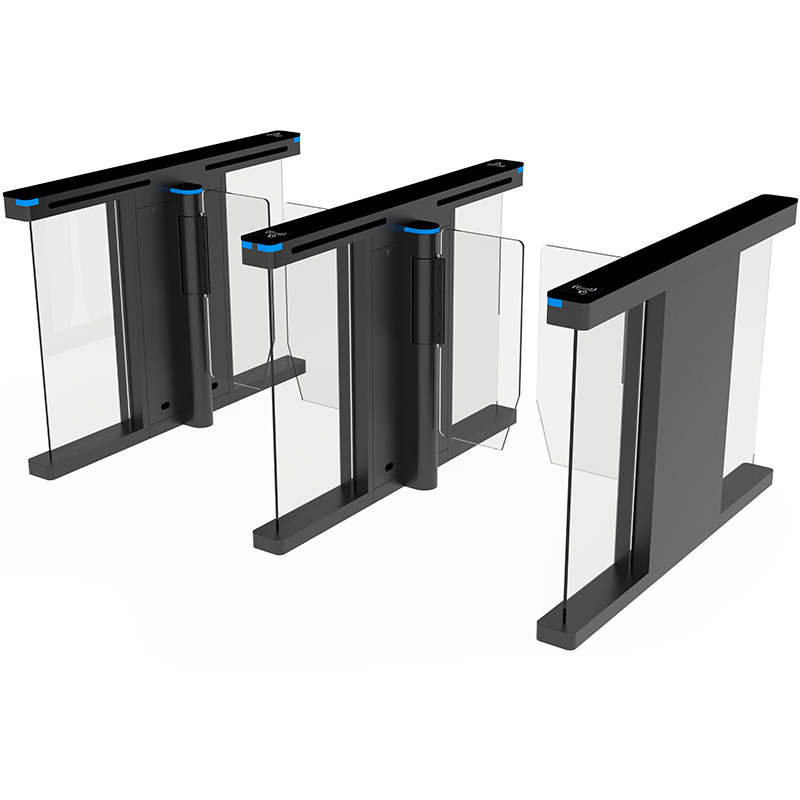

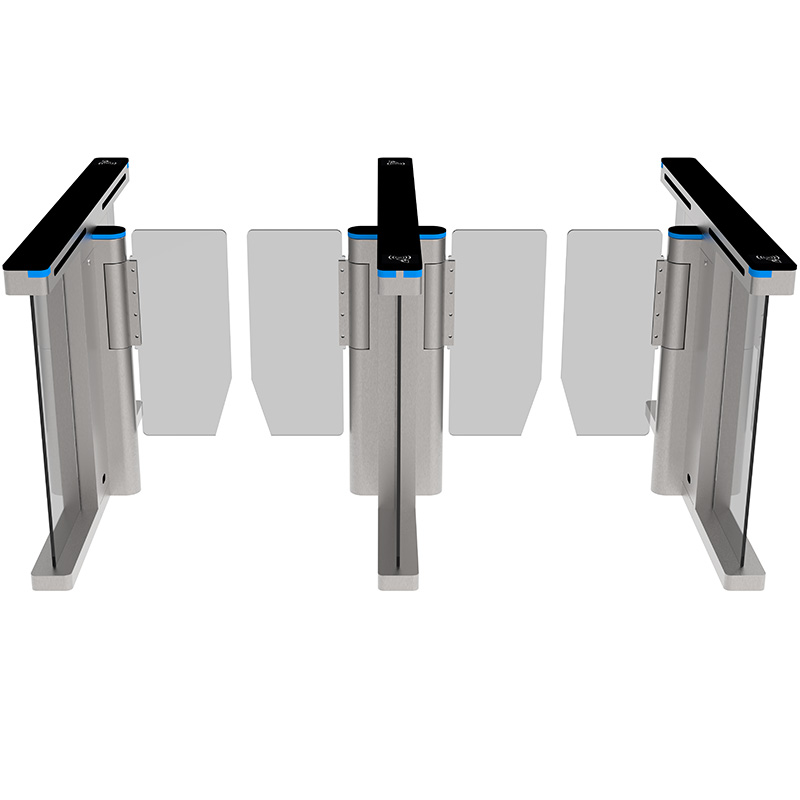

SPEED GATES NZ Automatic Slim Fast Speed Gates Swing barrier gate, we exporting speed gates security turnstiles to NZ for lobbies.

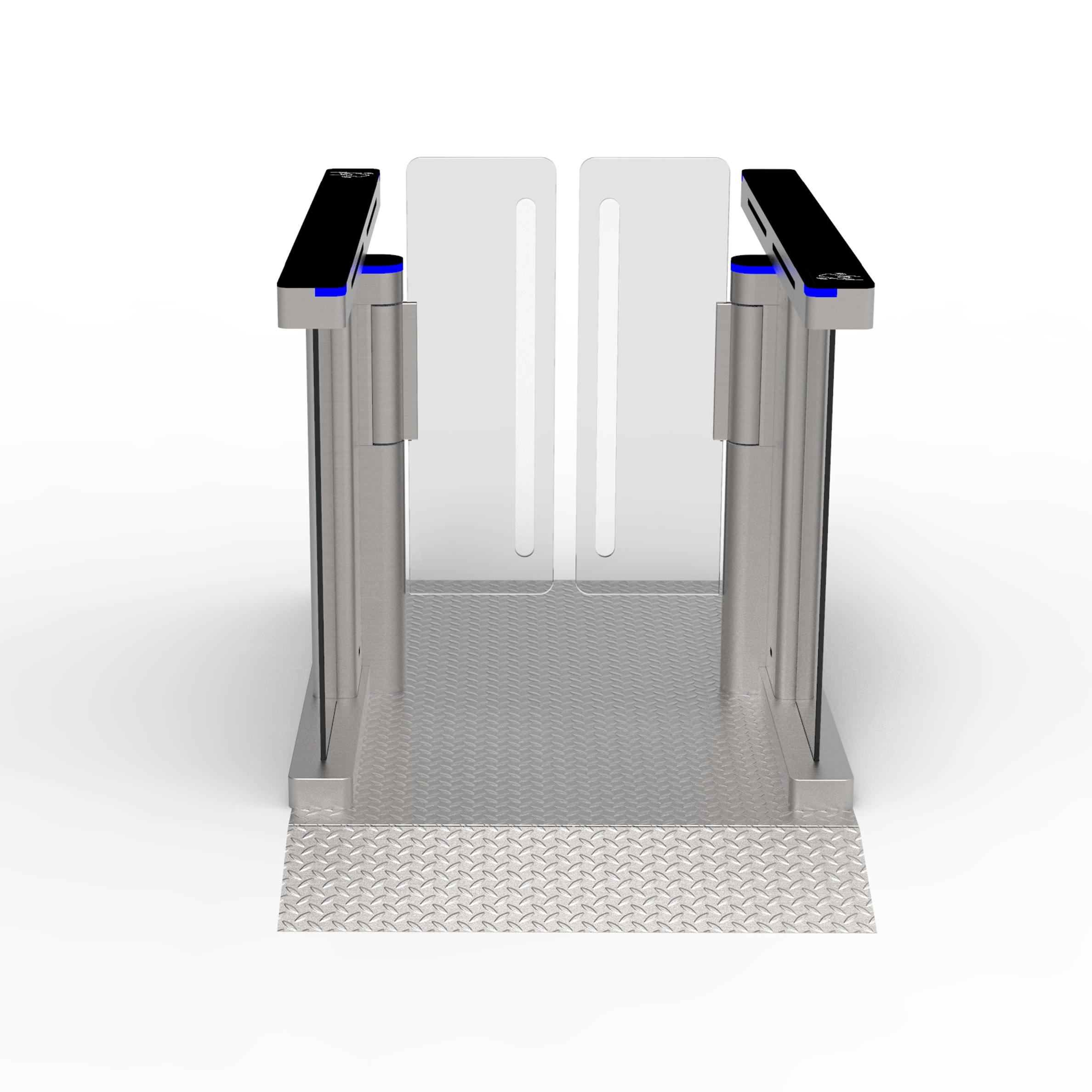

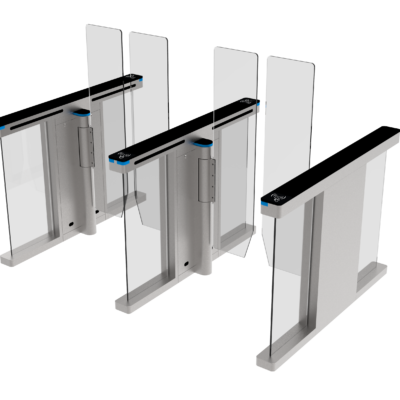

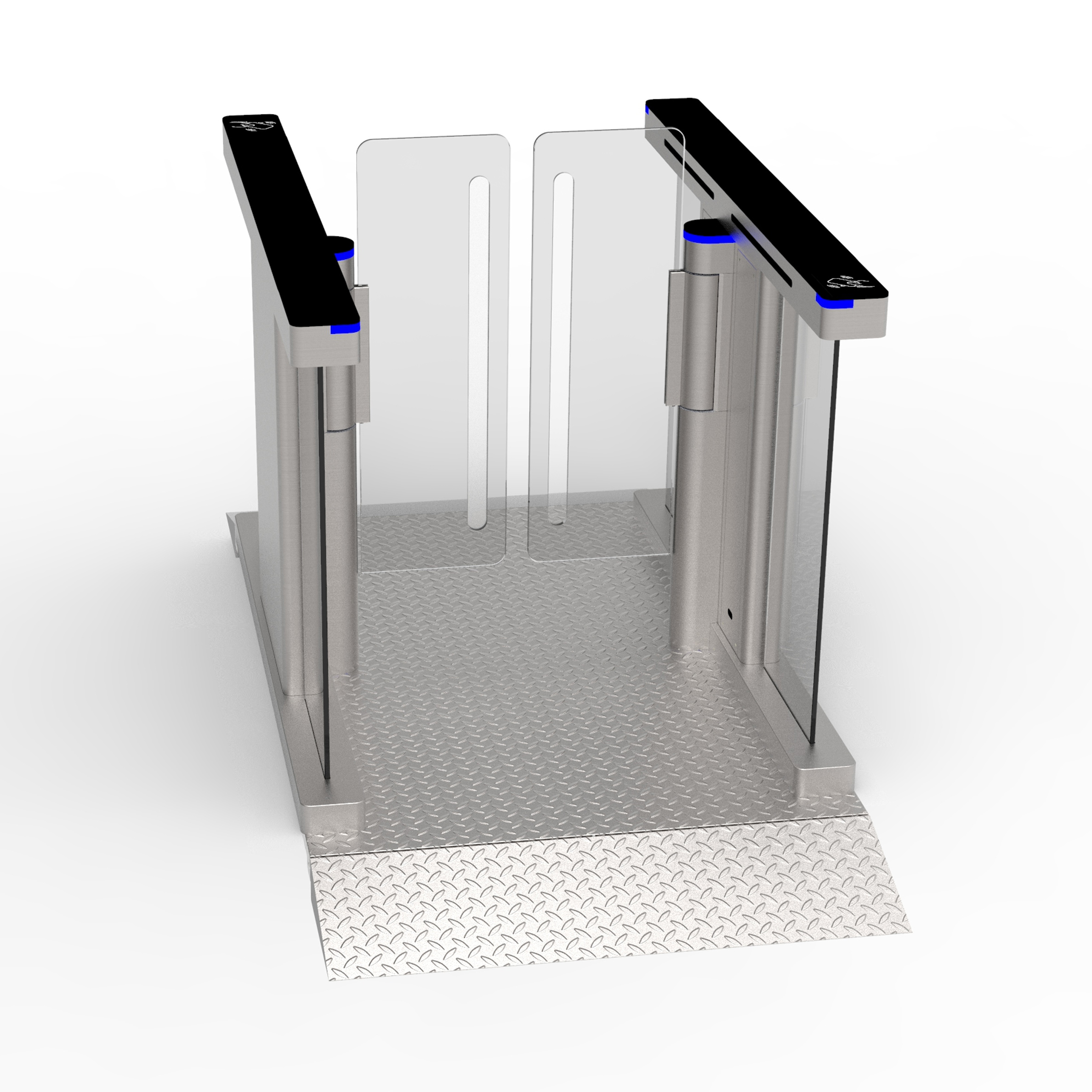

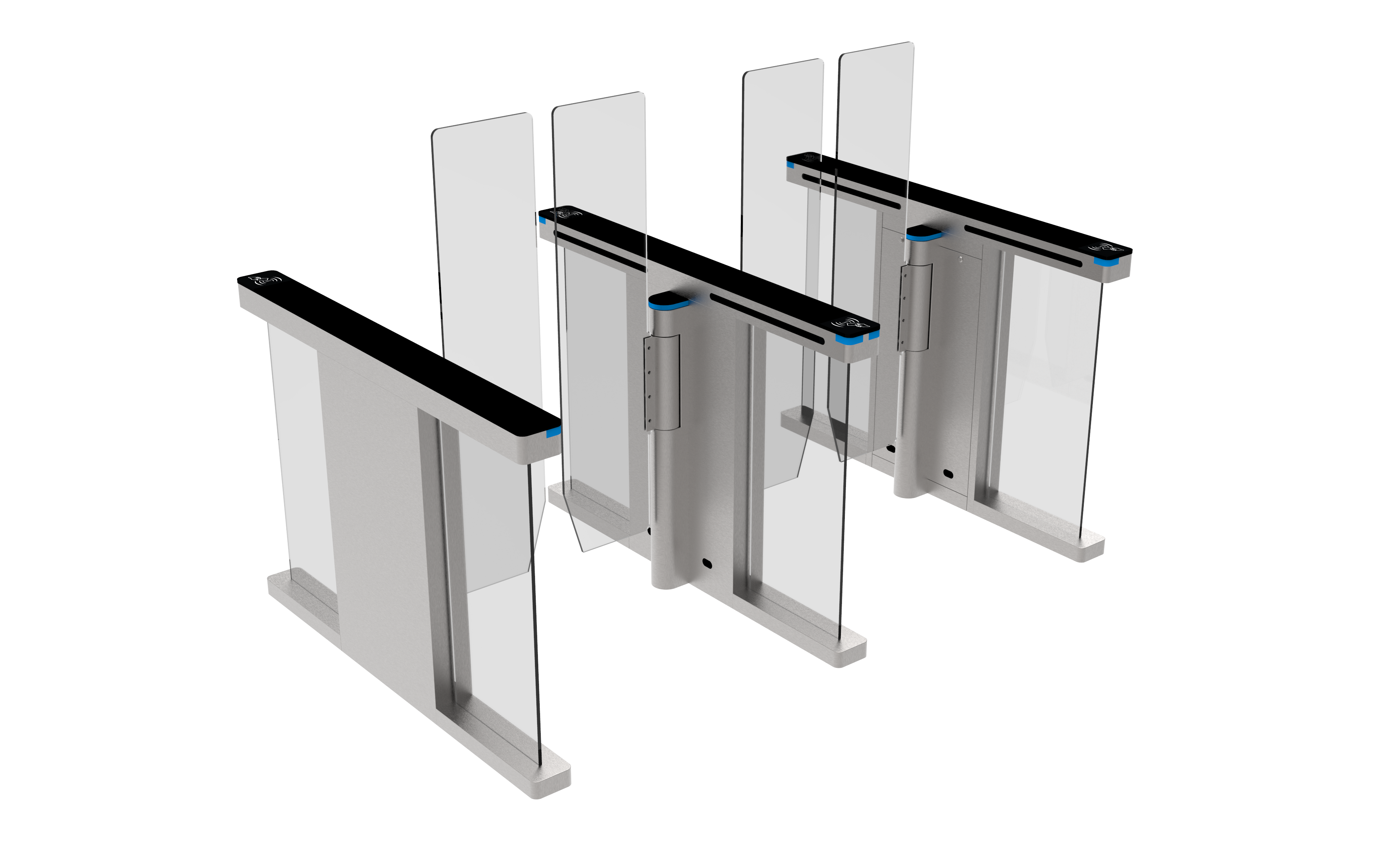

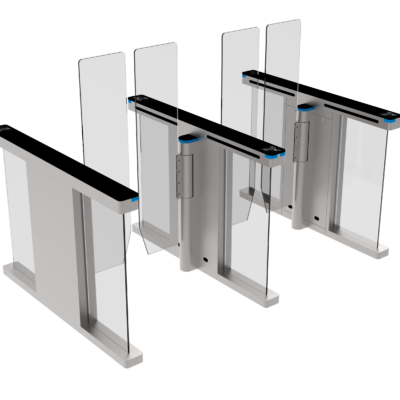

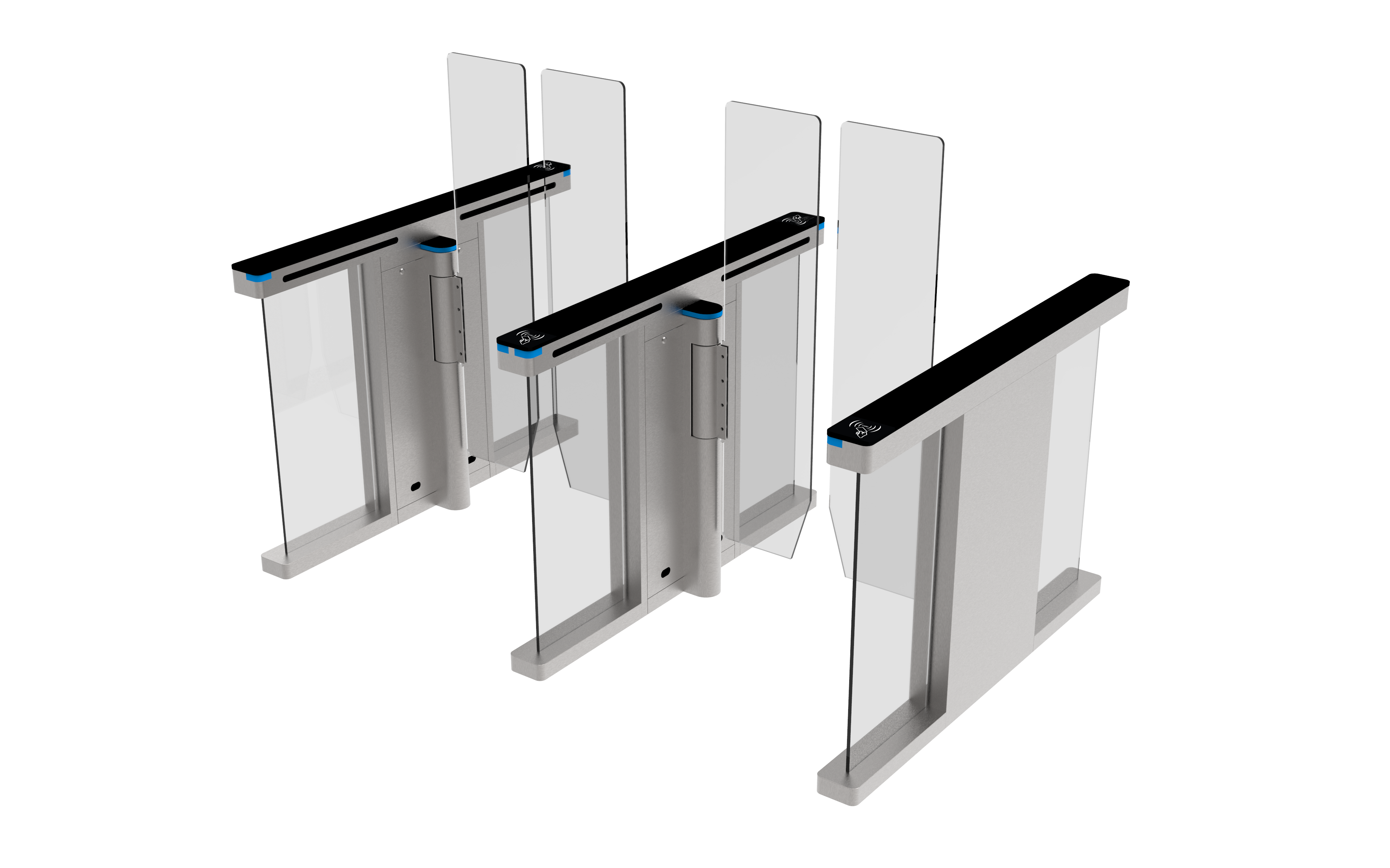

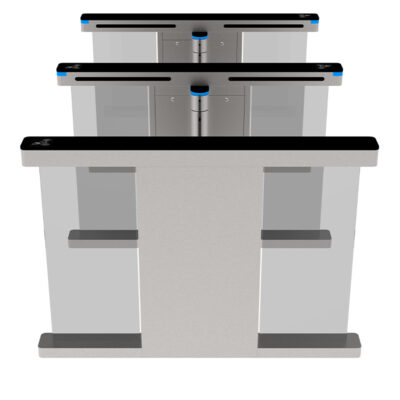

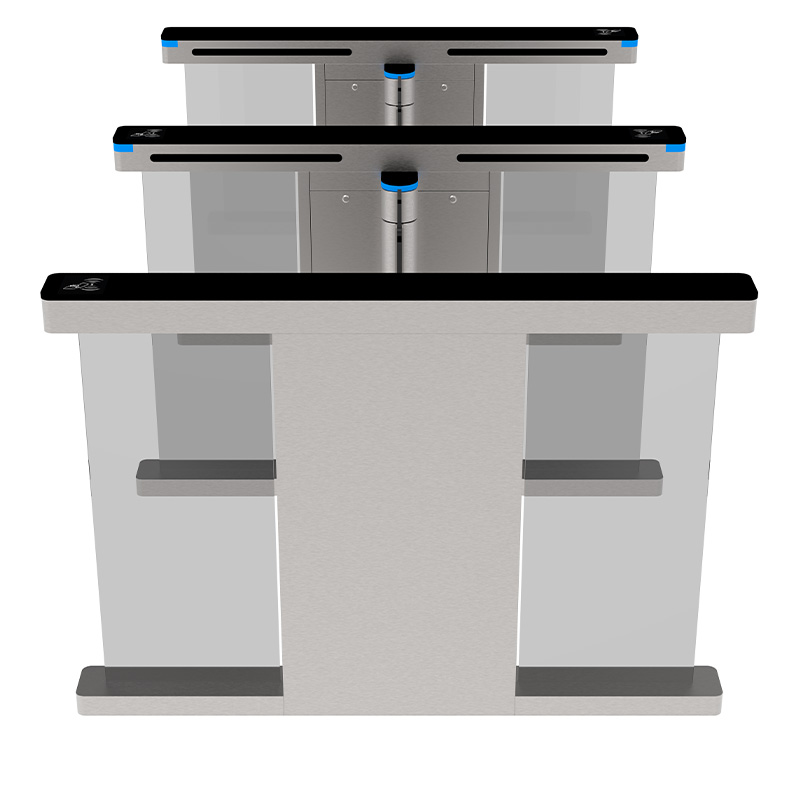

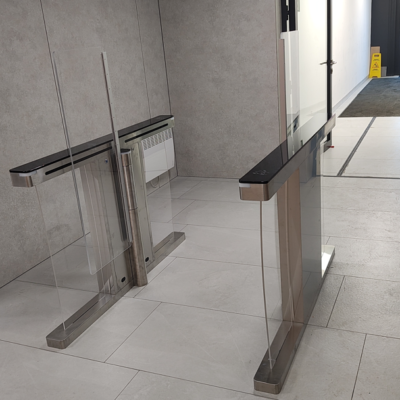

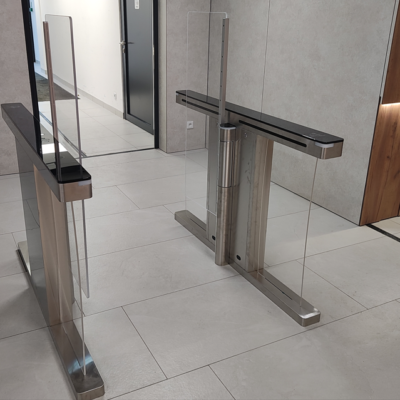

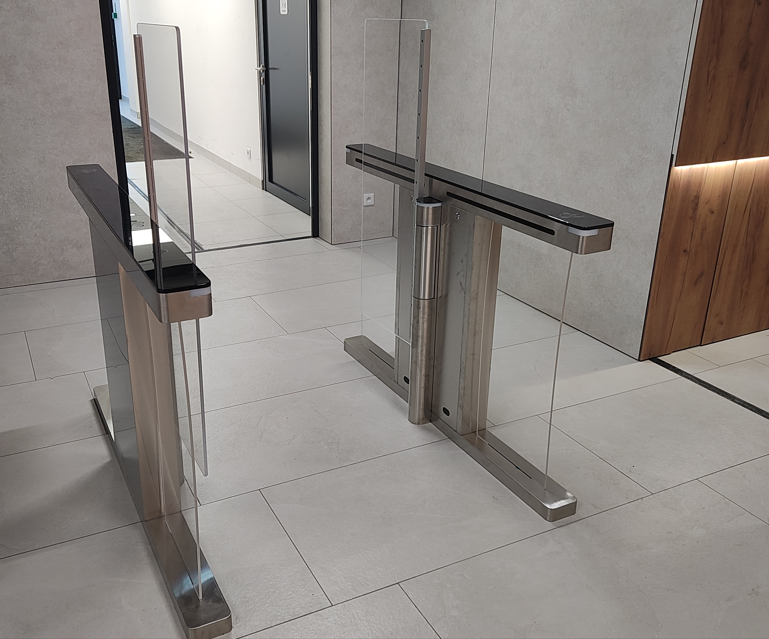

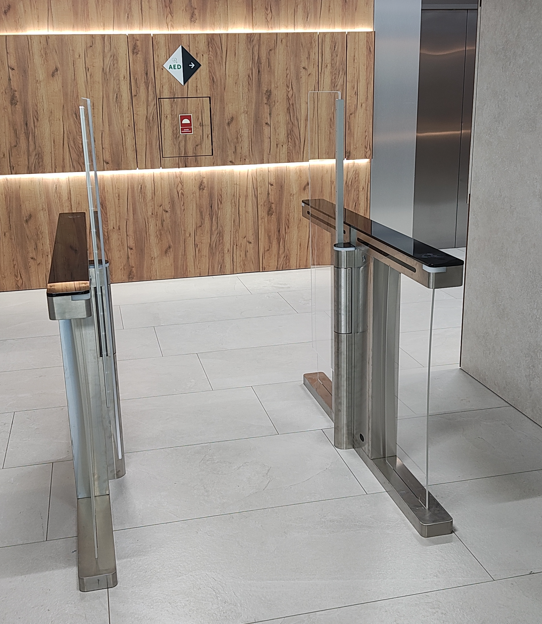

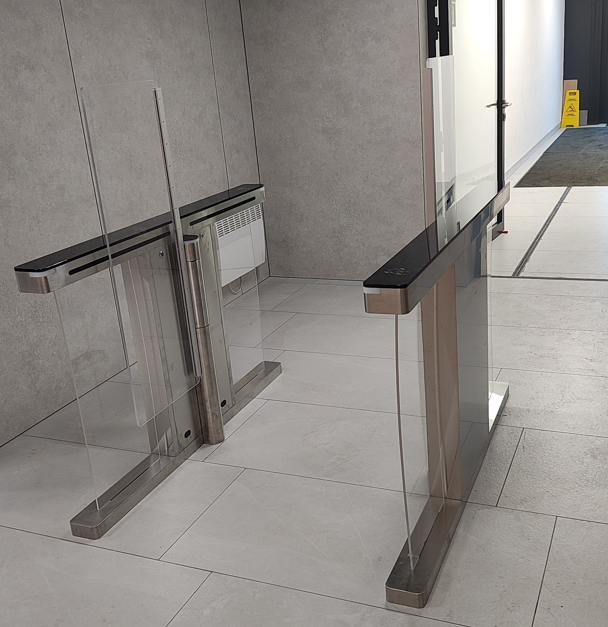

THE SPEED GATES NZ MT-A305 is a high-end intelligent swing turnstile gate product from Mairs, which can fully detect the passing situation of the human body.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.
This speed gates body material is 304 stainless steel which is anti-rust and durable and high resistance.

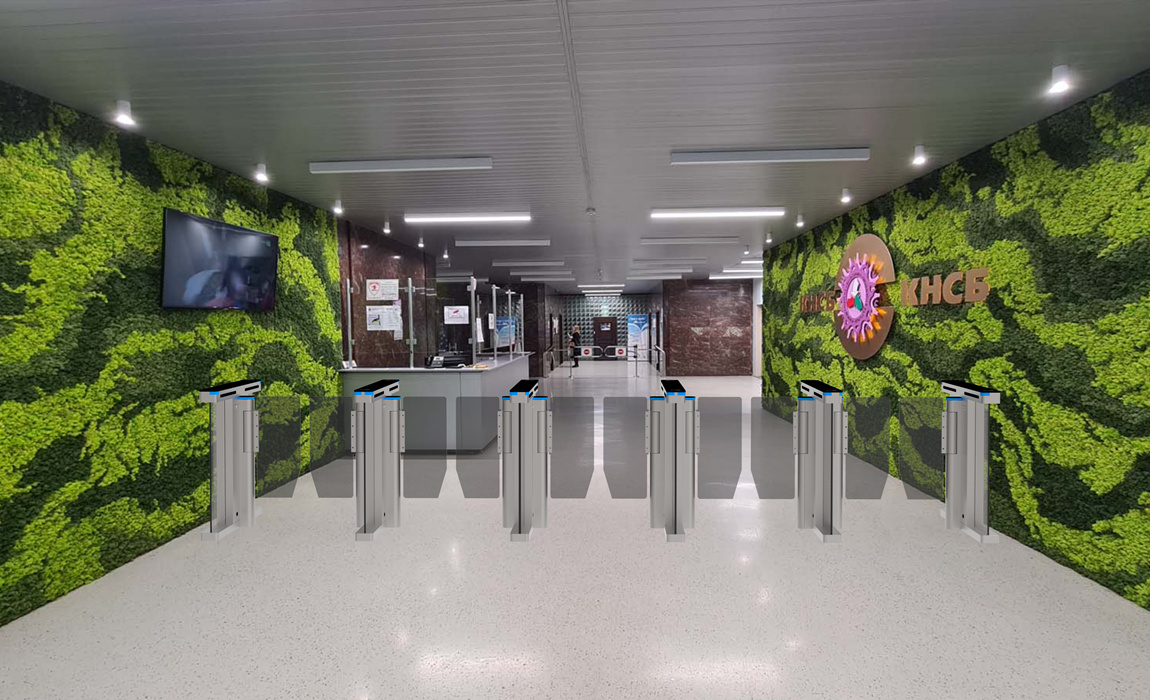

This speed gates NZ turnstile can be compatible with IC cards, ID cards, barcode cards, and fingerprint card readers, face recognition cameras, and other biometric devices, providing civilized and orderly access for staff; Effectively manage the access rights of employees. It can be widely used in lobbies of buildings, stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and other places that need intelligent access control management.
Technical Parameter:
- Size: 1500x120x980mm (can be customzied)
- Material: 1.2mm SUS 304 Hairline 400#+Top Cover 12mm black acrylic
- Arms material: 10mm Acrylic
- Pass Width: standard 600mm max 1300mm（arm hollowed out)
- Passage direction: Single-directional/Bi-directional
- Pass rate: 30-35 persons/minute
- Operating time: 0.2 seconds
- Power input: AC100-240V,50/60HZ
- Working voltage: 24V
- Working humidity: 30%~95%
- Working temperature: -40℃~+70℃
- Working environment: Indoor
- Input interface: RS485, Dry contact
- Mechanism: Servo Brushless motor
- Speed gates nz Infrared sensor: 6 pairs
- MCBF: 5,000,000 Cycles
- Feature: Arm height can be customized
- Application: Office Building, Hotels, Government Halls, etc
- We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have
- one, we also provide a complete security access control solution. Please refer to the video below for details.
