Technical info
- Length: 1500 mm
- Width: 150 mm
- Height: 980 mm
- Passage width: 600-1200 mm
- Material: Cap1.5 mm+body 1.2mm Brushed SUS 304
- Arm material: 10 mm Acrylic(tempered glass option)
- Pass Width: Standard 600 mm max 1200 mm（arm hollowed out more than 900mm)
- Arm Height: 1500 mm max(within 900 mm width)
- Passage direction Single directional/Bi-directional
- Pass rate: 30-35 persons/minute
- Operating time: 0.2 seconds
- Power input: AC100-240V,50/60HZ
This high-quality Servo Motor Security Speed Gates Turnstile MT-A304 carries a 2 years warranty and durable maintenance and repair support.
Mairs can customize speed gates and security speed turnstiles according to your requirements.

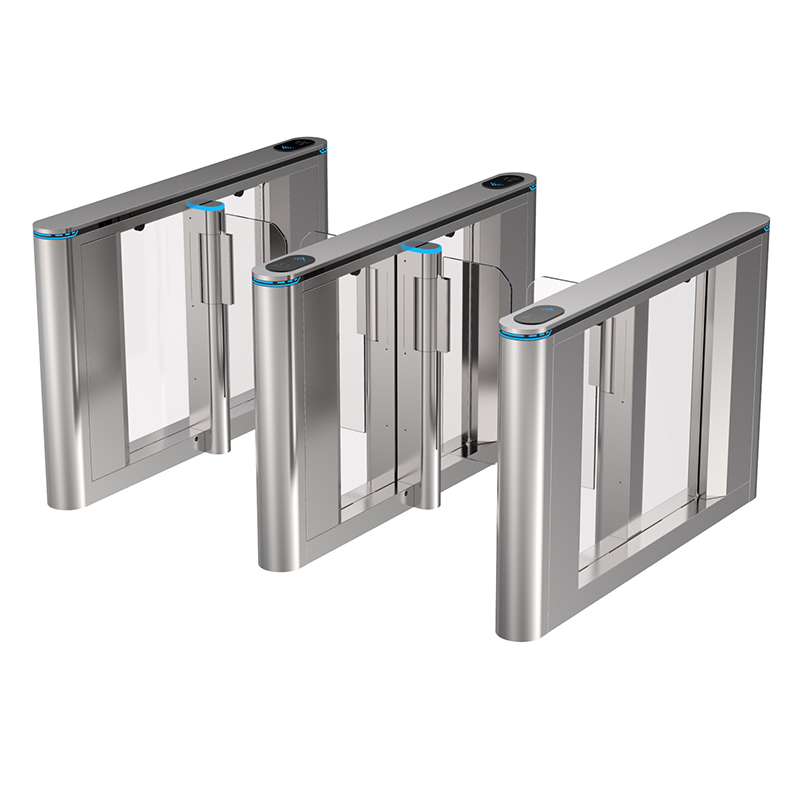

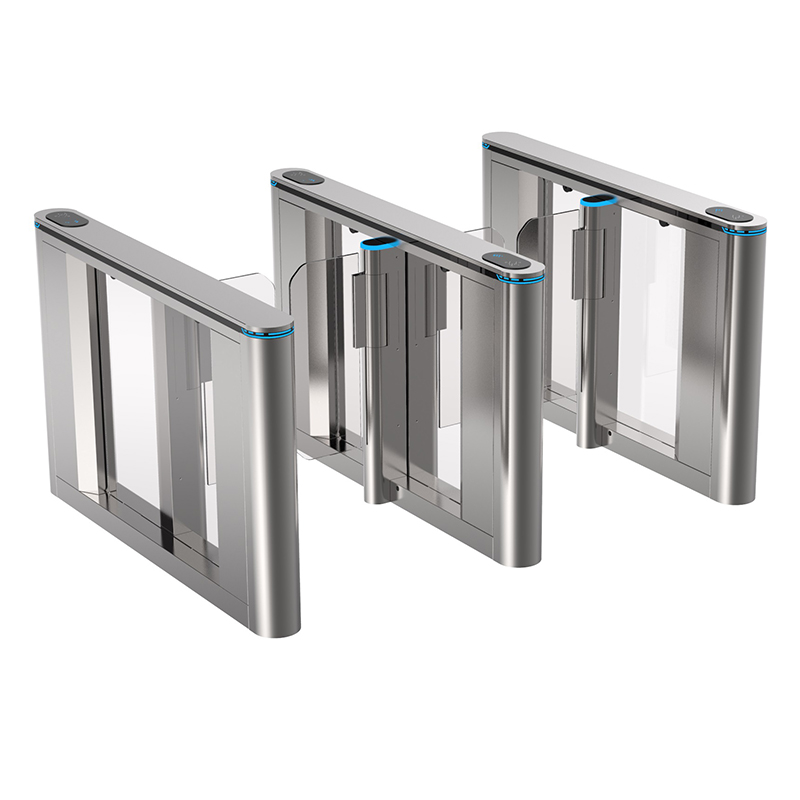

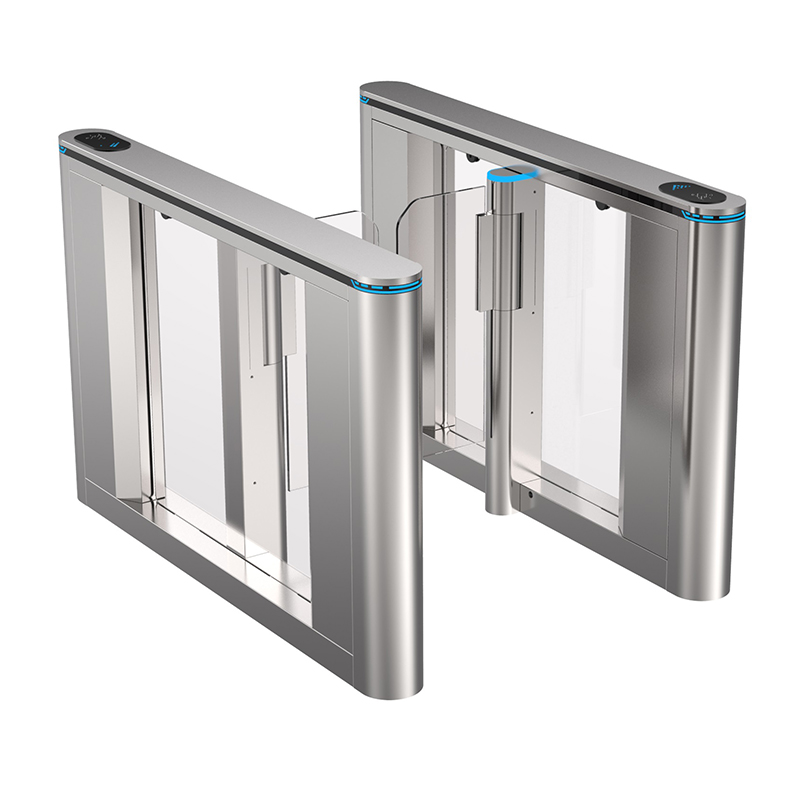

Servo Motor Security Speed Gates Turnstile Automatic Slim Swing barrier gate, Servo Motor Security Speed Gates Turnstile for lobbies.
Security Speed Gates Turnstile is a high-end intelligent swing turnstile security speed gates product from Mairs, which can fully detect the passing situation of the human body. This speed gates body material is 304 stainless steel which is anti-rust and durable and high resistance.
These Servo Motor Security Speed Gates can be compatible with IC cards, ID cards, barcode cards, fingerprint card readers, face recognition cameras, and other biometric devices, providing civilized and orderly access for staff; Effectively manage the access rights of employees. It can be widely used in lobbies of buildings, stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and other places that need intelligent access control management.
Technical Parameter:
- 1. Size: 1500*150*980mm
- 2. Material: Cap1.5 mm+body 1.2mm Brushed SUS 304
- 3. Arm material: 10 mm Acrylic(tempered glass option)
- 4. Pass Width: Standard 600 mm max 1200 mm（arm hollowed out more than 900mm)
- 5. Arm Height: 1500 mm max(within 900 mm width)
- 6. Passage direction Single directional/Bi-directional
- 7. Pass rate: 30-35 persons/minute
- 8. Operating time: 0.2 seconds
- 9. Power input: AC100-240V,50/60HZ
- 10. Working voltage: 24V
- 11. Working humidity: 30%~95%
- 12. Working temperature: -40℃~+70℃
- 13. Working environment: Indoor
- 14. Input interface: RS485, Dry contact
- 15. Mechanism: Servo Brushless motor 120W
- 16. Infrared sensor: 6 pairs
- 17. MCBF: 5,000,000 Cycles
- 18. Application: Office Building, Hotels, Government Halls, etc
