TRIPOD TURNSTILE ME113-2

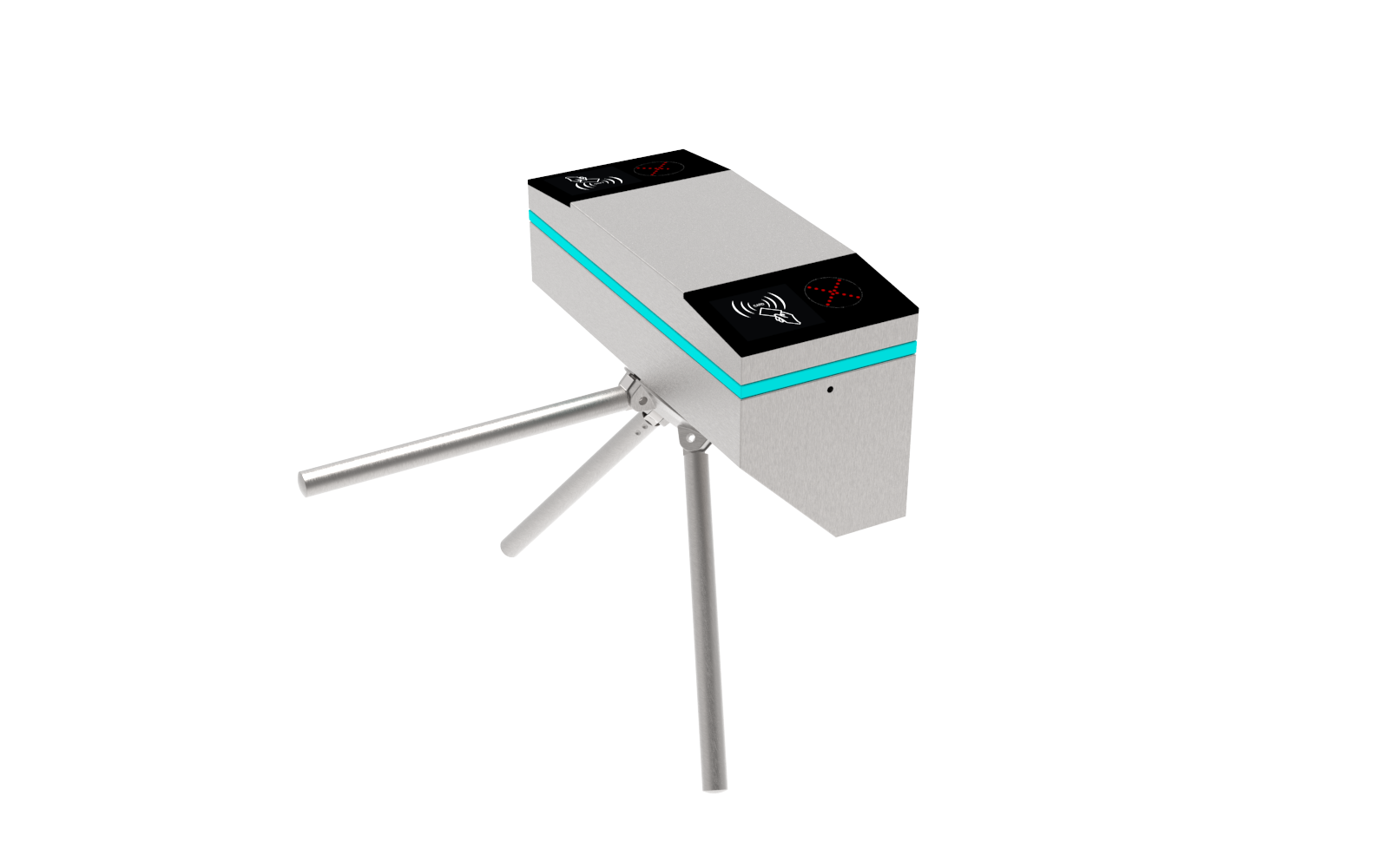

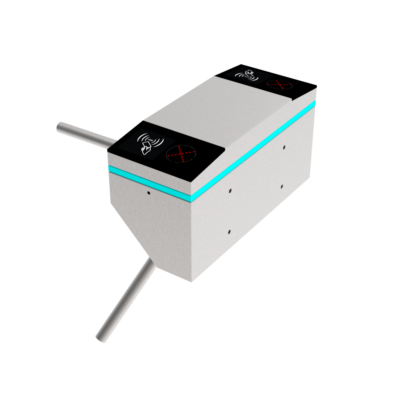

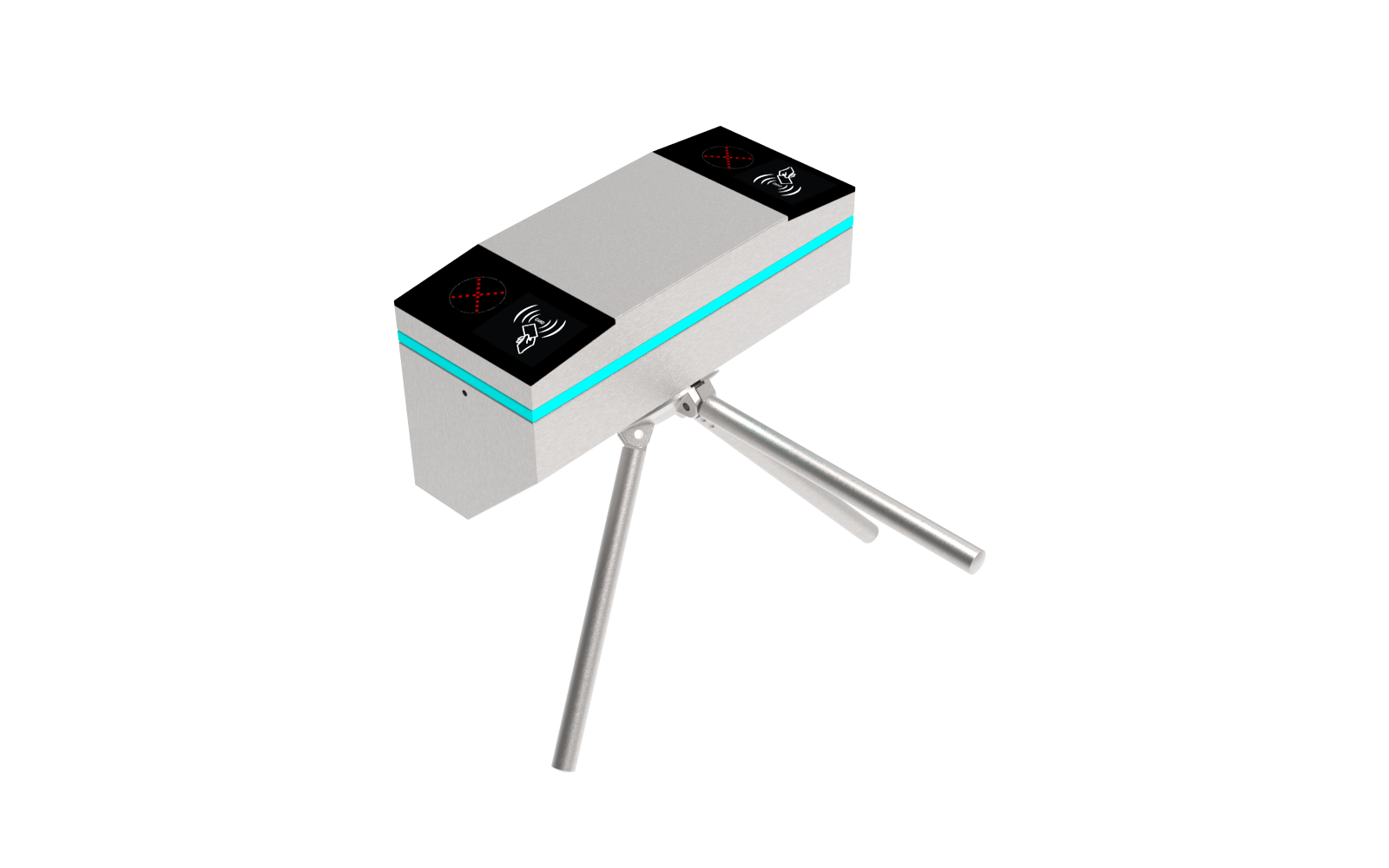

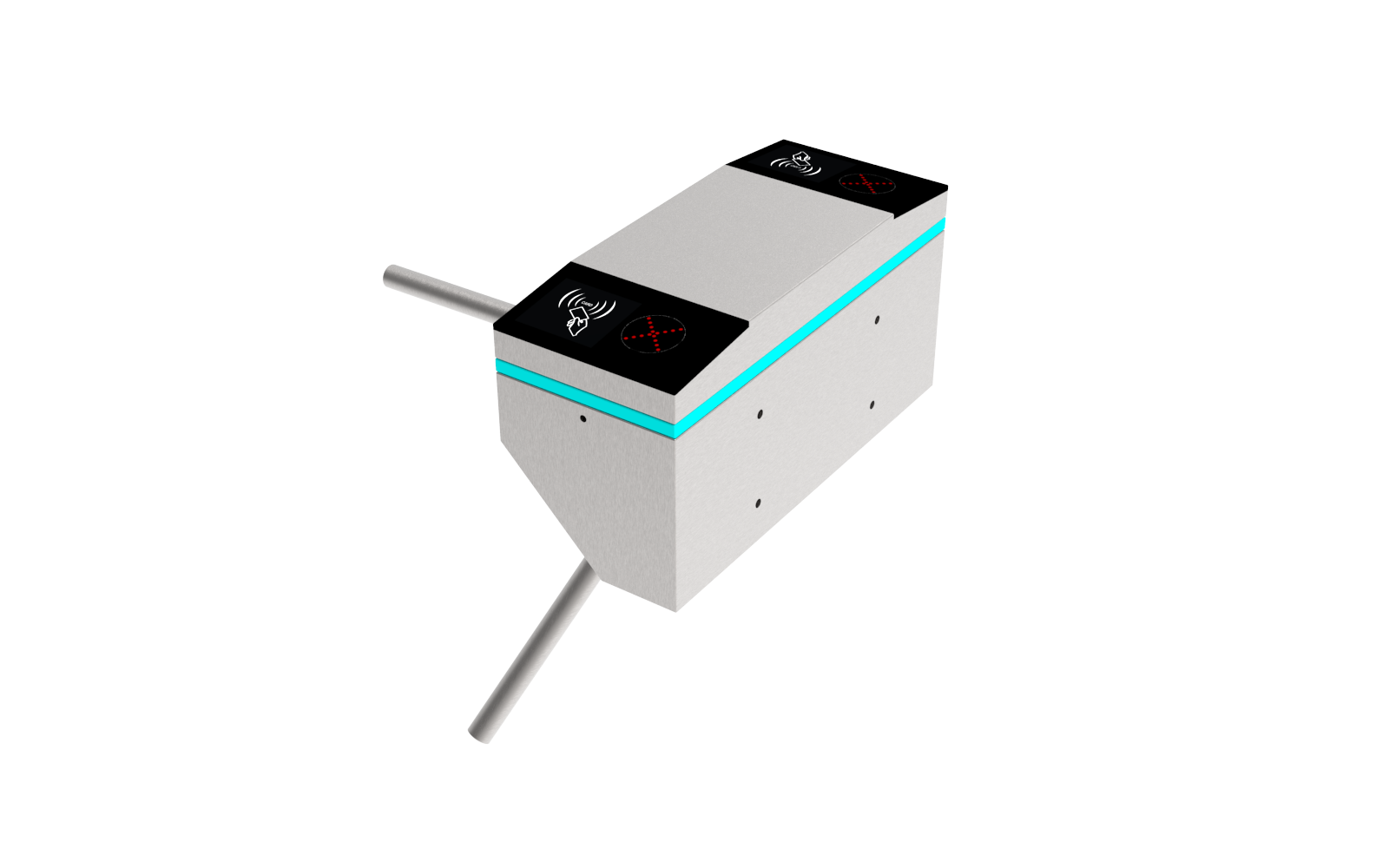

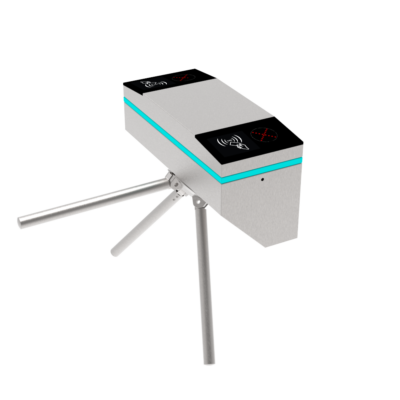

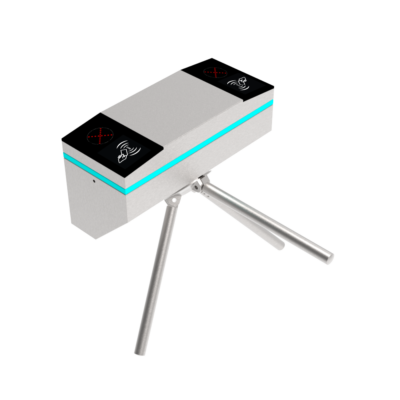

WALL MOUNTED AUTOMATIC/SEMI AUTOMAT TRIPOD TURNSTILE ME113-2

The automatic tripod turnstiles is a kind of pedestrian turnstile gate equipped with a fully automatic turnstile mechanism, in which all operations of the turnstile machine are completed by the brushless motor. The automatic turnstile gate can be self-check automatically when powered on. In aging test mode, it will open and close automatically also.

• In card mode, once there is an open signal, it will open at 15 degrees and push slightly the arm, and the gates will fully open automatically.
• Tripod turnstiles can be configured for uni- directional or bi-directional use. In unidirectional mode, they permit passage in only one direction, while in bi-directional mode, they allow entry and exit through the same turnstile.
• Tripod turnstile features lights and audible signals to inform users whether access is granted or denied, promoting smooth and efficient passage.

Features

• LED ALERTS Indicate traffic direction with highly visible green arrows and red X icons. The front
• LED will keep green arrows shows that the lane is available. If the lane is not available, it will turn red.
• EMERGENCY EXIT Functionality allows free passage in the event of an emergency.The arm will drop off when power outage. Manually reset when power is restored.
• WORKING DIRECTION Single directional or Bidirectional are optional.
• AUTOMATIC RESET Arms will lock automatically within 5s (adjustable) if a person delay to access.
• ANTI-PASS BACK The turnstile will stay in lock if someone wants to entry in the reverse direction.
• ANTI-INTRUSION the gate is locked automatically until a valid open signal is sent.
• FAST UNLOCK One there is a valid signal, the gate will unlock within 0.2s (adjustable).
• HYDRAULIC DAMPER Equipped with a hydraulic shock absorber for less noise during operation.
• AUTOMATIC MECHANISM The mechanism is fully automatic for smoother work and less noise.

Customization

• Dimension: Can be made according to the client’s site.
• The fully automatic mechanism can be replaced with a semi-automatic mechanism.
• Material: 304 stainless steel to 316 stainless steel (wet environment), or iron with powder coated.
• The outer paint finish can be colour coated to match the local environment.
• LED lights can be added.
• Mounting base can be added.
• Cutouts can be customized to fit any reader.
• LOGO can be customized.
• Customized 3D drawings are available based on the site photos.
• OEM& ODM service is available.
