Technical info
- Size: 1400*120*1000 mm (can be customized)
- Lane Width: 600 mm (Standard) 900 mm( Handicapped)
- Arm material: Acrylic
- Passing speed: 40 person/min
- Power supply: 110 V/220 V 50/60 Hz
- Brushless motor
- An anti-hit mechanism, automatically reset when encounter force impact
- Speed gate turnstile Driving Motor: 24V
- Casing Material: 304 stainless steel
TURNSTILE GATE INDONESIA carries a 2 years warranty and durable maintenance and repair support.
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition camera, and so on.

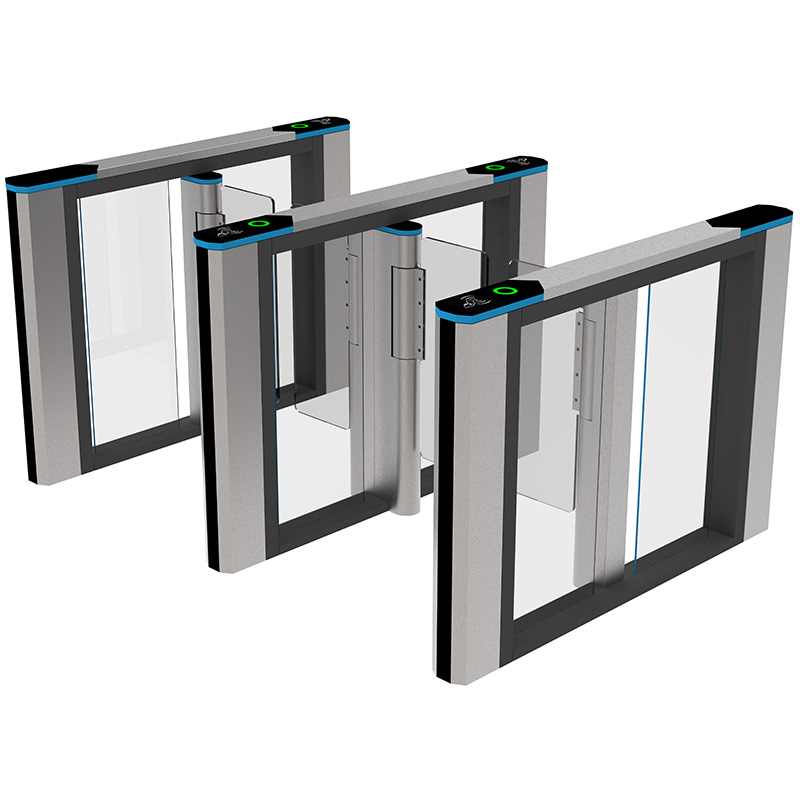

The turnstile gate Indonesia is a sleek and elegant design gate. It controls the people to enter or exit the restricted area.
The casing is high-quality brushed 304 stainless steel.
The mechanism uses cutting-edge technology to min the size but ensures high performance. Mairs offers the best turnstile gate Indonesia.
They are also equipped with a famous brand DC brushless motor and sophisticated sensor.
Be up to your preference or need, the lane width can be set to 600-900mm. 600mm is standard access.900mm is handicapped accessible.
The turnstile gate Indonesia comes with 6 pairs of infrared sensors to ensure the security of passage at high precision.
It has a standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
The reasonable design and high configuration are to ensure the gates can move accurately and quietly.
It is a low-power consumption, energy-saving, and environmentally friendly. Mairsturnstile is a professional speed gate turnstile manufacturer.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
- In case of emergency, cut off the power, the turnstile gate Indonesia will open automatically to allow free passage which is complying with fire safety requirements.
- But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
- Optical Turnstiles are suitable for luxury and high-end entrance solutions.
- The whole system runs smoothly, with low noise, and high speed.
- LED on the sideboard is optional
- Working environment: Indoors
- Alarm function, if there is an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
- There is a total of 6 pairs of infrared sensors The middle sensor is to prevent pinch pedestrians.
- Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
- LED indicator. Red cross and green arrow. There are also LED indicators on the front post. The LED light can be added to the arms.
- Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, and shopping stroller increasing the passing efficiency.
- Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close
- automatically.
- Anti-bump, Anti clamp, The gates come with a brushless motor. During operation, if someone hits the arm, the gate will reset automatically. This function
- effectively prevents pedestrians, especially children from bumping, clipping, striking, etc.
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
